Horizontal Balancing Machine - Dynamic Balancing Machine Manufacturer-JZABM(Listed company)

Features:

01

Integral H-shaped support frame, light and reliable structure, small vibration system damping and good rigidity；

02

Each accessory part adopts international and domestic well-known brand products, such as gearboxes, rolling bearings, low-voltage electrical components, etc；

03

Strict and complete quality system, complete technology, testing methods and configuration of various metal processing equipment to ensure product quality；

04

Perfect comprehensive supporting capabilities, can provide flexible and diverse options, and provide you with the most optimized product configuration；

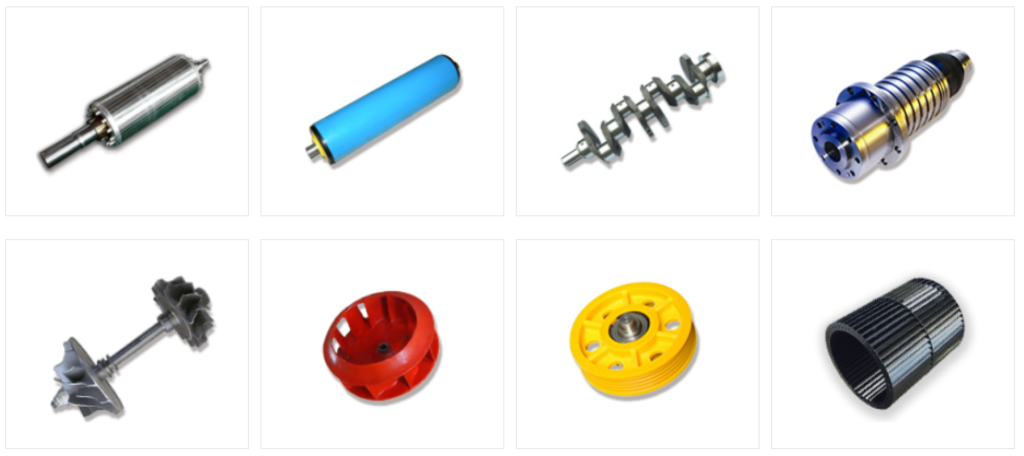

Miniature ring belt balancing machine workpiece

Small ring drives the balancer workpiece

The H series hard-bearing balancing machine is one of the most advanced general-purpose horizontal balancing machines with independent intellectual property rights integrating precision machinery and modern electrical technology. Because of its simple operation, stable performance and precise detection accuracy, it is widely used in industries such as motors, fans, water pumps, printing, papermaking, textile machinery, internal combustion engines, electronics, machine tools and aerospace.

This machine is especially suitable for the balance detection of small motor rotors, small blower rotors, small and medium machine tool spindle rotors, etc. This machine adopts the combination of loop belt + AC motor, which drives the workpiece to rotate through the loop belt. It has the characteristics of high precision, high efficiency, simple operation, intuitive display, and strong human-computer interaction. Before starting, just adjust according to the distance between the two correction surfaces of the rotor, the distance between the correction surface and the supporting point, and the radius of the correction surface, and the magnitude and phase of the workpiece imbalance can be correctly displayed in one start.

Miniature ring belt balancing machine workpiece

Small ring drives the balancer workpiece

Parameter model	H1BK	H10BK
Weight range	10 kg	16kg
Maximum diameter of workpiece	360 mm
Diameter range of belt drive	10-150 mm
The distance between the two supports from the drive flange to the right support center	36 mm-450 mm
Axle journal range	Standard：φ5-φ22 mm	Standard：φ6-φ30 mm
Axle journal range	Extend：φ22-φ50 mm	Extend：φ30-φ70 mm
Balance speed (when the diameter of the workpiece is φ100mm when dragging）	0-1500 r/min
Motor power	0.22 kw
Min achievable residual imbalance remar	≤0.1 g.mm/kg
Maximum indicating sensitivity of HW210 electrical measuring box	0.15 g.mm	0.3 g.mm
Maximum indicating sensitivity of HW210 electrical measuring box （When the balance speed is >820 r/min）	0.05 g.mm	0.1 g.mm
Unbalance reduction rate URR	≥95%

Q1: How-to vedio provided?

A: Yes. if required, our engineers will record a specialize how-to video for you.

Q2: Are your company a trading one or a factory?

A: As the only listed company in China’s dynamic balancing field, we have two manufacturing plants, one in Shanghai and the other in Hangzhou. 20 years focusing on balancing machines field. 15 years exporting experience, warmly welcome to visit our plant factory.

Q3: After an order is placed, when to deliver?

A: If we have inventory, we can arrange shipment within 7 days. Please be aware that our production lead times depend on specificitems and item quantities.

Q4: What about the after-sales service and product’s quality?

A:After the warranty, the professional after-sale service team will provide perfect technical support.and help customer solve problems encountered while using our product, handies guest problems and complaints professionally and timely. Each instruments must be carried out 100% quality examination and test when shipping and delivery goods. Product use training, each of our product provide video training to show you how to operate. Engineers would be go abroad to training, repair and others help you need.

Q5: what about the packing of equipment?

A: Covered with air bubble film before put the machine into the stanard exporting wooden case, which not only has good shock absorption, impact resistance, heat sso has the advantag- es of nontoxic, odorless, moisture corrosion, good transparency etc.
